Toprint FlexoのホールダーGluer 150kwは機械を作るカートン箱を波形を付けた

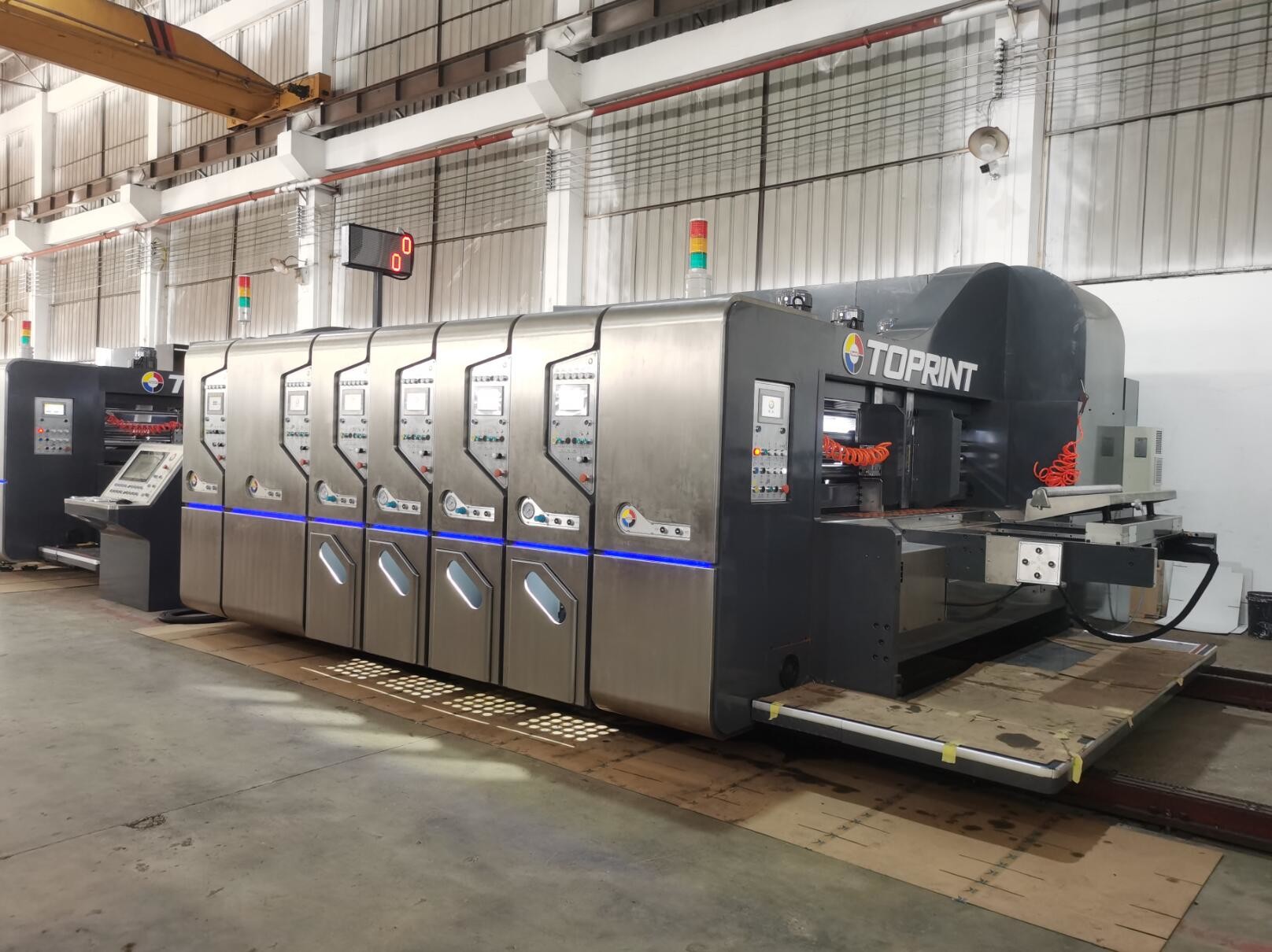

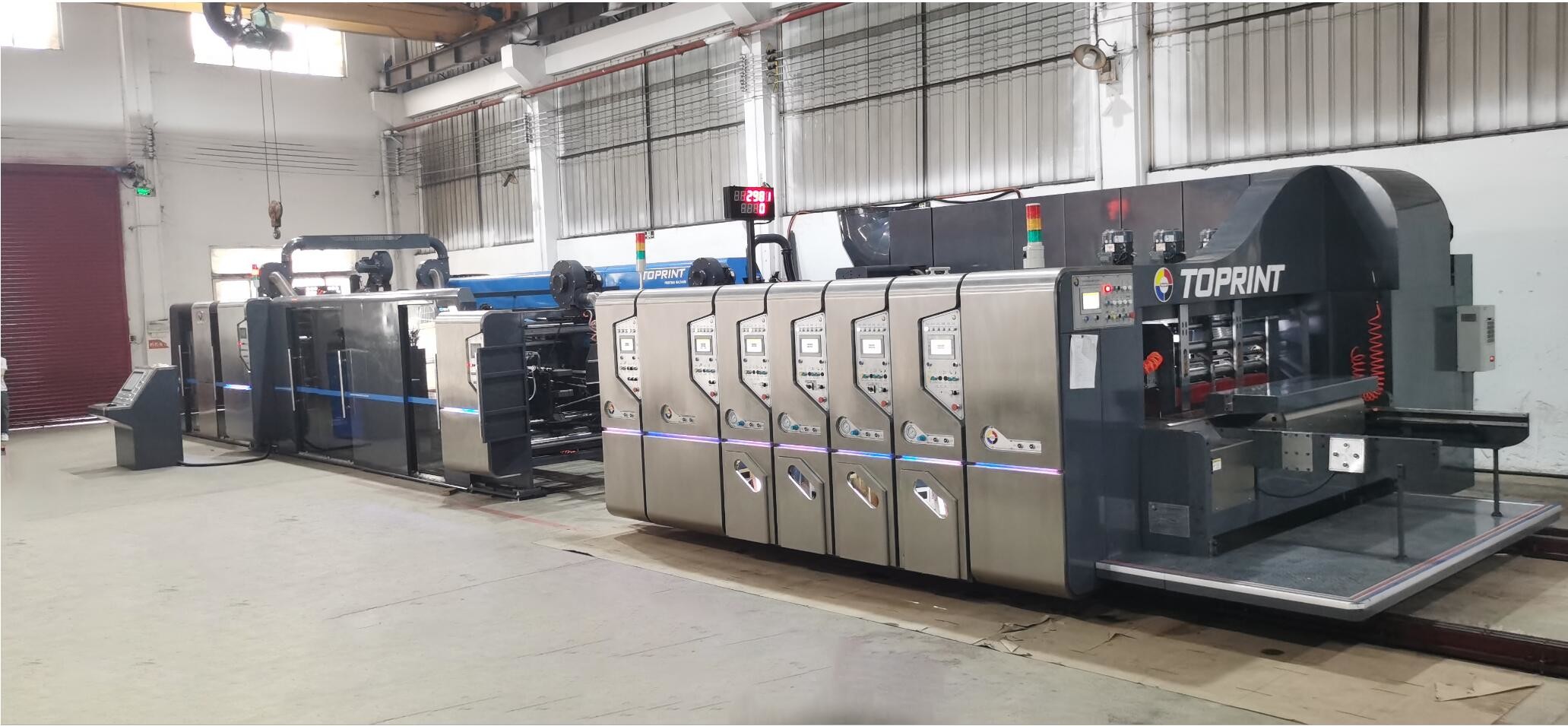

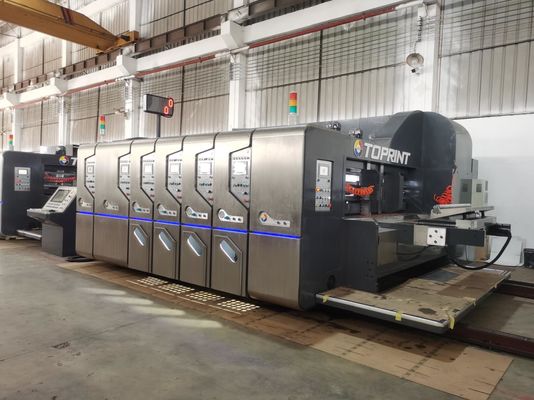

300sheets/min Flexo Folder Gluer 150kw Corrugated Carton Box making Machine

General Specifications

1. Automatic corrugated board multi-color printer slotter die-cutter machine, is the must need in the paper box package industry, that is easy operation and save the labor and save the cost, and this is the most popular machines in current carton box factory.
2. Folder-gluer machines are an integral part of the packaging industry. They are utilised by companies all over the world to produce high quality packaging quickly and efficiently. ... The machines are easy to operate, with paper feeders ensuring that paper is always fed into the system correctly to guarantee productivity.
3. A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.

MAIN PARAMTERS

FEEDING SECTION

1. The advanced feeding system adopts Lead Edge Feeder, Non-crush Feeding system Optional.
2. 3-4 dust blowers was adopted for dust and scraps remove, with two groups of feeding brushes.
3. Right and Left side baffle are automatically adjustment with order management.
4. Quickly change device adopts for Rubber wheel, easy for replace.
5. Main motor with protection system, when units not close, machine will not be running.
6. Gaps of Feeding Upper and Lower roller are computerized control or by Order Management System.

PRINTING SECTION

1. Printing wheel (printing plate form wheel) phase position adjust by planet wheel, twirl 360°adjust electrically, it can stop at operation or stop. PLC control system, setups are return to zero, scrape form memory, automatic reset and phase position adjust after entering values.
2. Transverse movement of Printing Cylinder is ±5MM. printing surface with scale mark make hang form and distance measurement easily.
3. Install foot pedal control the rotate of cylinder. It is easy to change form, scrape form and pull switch so as to ensure staff safety.
4. Anilox roller use “Brightas” to ensure ink distribution effect and printing quality.
5. Rubber shaft use Taiwan Jingyang, waist drum type, good ink distribution effect and good printing quality.
6. Gaps of Printing Cylinder and Impress roller are computerized control or by Order Management System.
7. Gaps of Rubber and Ceramic Roller are computerized control or by Order Management System.

SLOTTER CREASER SECTION

1. Adopts heavy Slotting structure, slotting unit weight is more than 11 tons for 900x2000mm model.
2. With Pre-creasing, Big-creasing, Thin-creasing, Single Slotting Shaft structure.
3. the linkage plate are synchronization movement with balance system.
4. Automatic Zero position to reduce machine adjusting time.
5. Servo Control for more accurate data saving.
6. Linear Guiding system with lead screw for slotting boss smooth and accurate moving.
7. Slotting boss adopts opposite insert structure, more stable and can make box as small as possible.

DIE CUTTER SECTION

1. Frequency control of Independent motor for Line Speed Compensation of Anvil Cover, which can track the line speed of Die cylinder, to make sure the upper and lower roller running at same speed.
2. With automatic grinding system for anvil rapid use.
3. Register servo Control, more precision and accurate.
4. Rubber mat moves from left to right. It can adjust main machine operation.
5. Gaps of Rubber Cylinder and Wooden Cylinder are computerized control or by Order Management System.

FOLDER GLUER & COUNTER EJECTOR

1. Top printing with down folding.
2. Both side folding side belts independent servo control.
3. Main transmission belts with suction fan for accurate transmission.
4. Paper insert arm, paper press arm, paper holding device,
5. Upper suction belt with down folding for stable performance.
6. Whole paper holding device transmission and counter ejector belts all servo control for accurate counting and ejecting.
7. Top loading device for receiving and stacking boxes.
8. USA VALCO gluing system
9. Quick positioning via AC servo control.
10. Full integrated construction with HMI control device.

For more information, please feel free to contact with us.
